Active Valve 3/2-Way with Media Separation by Camozzi

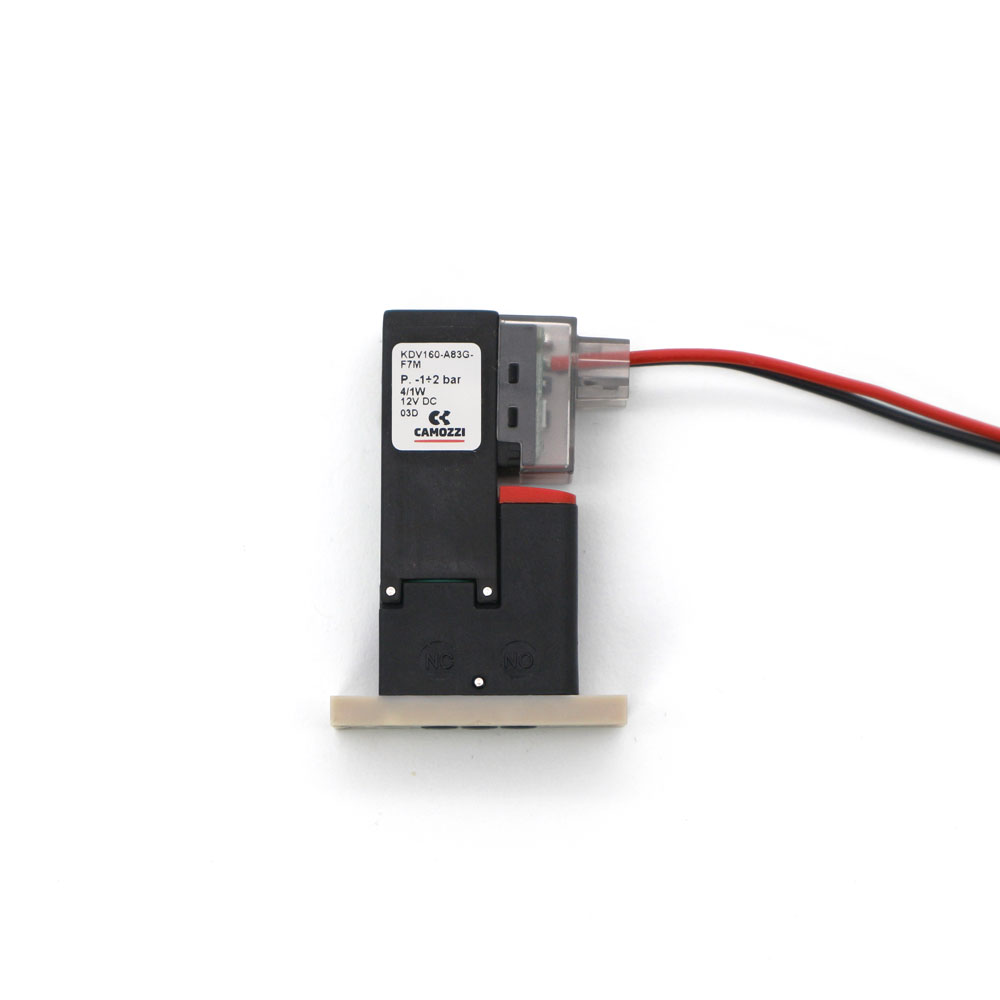

Active Valve 3/2-Way with Media Separation by Camozzi - Image 2

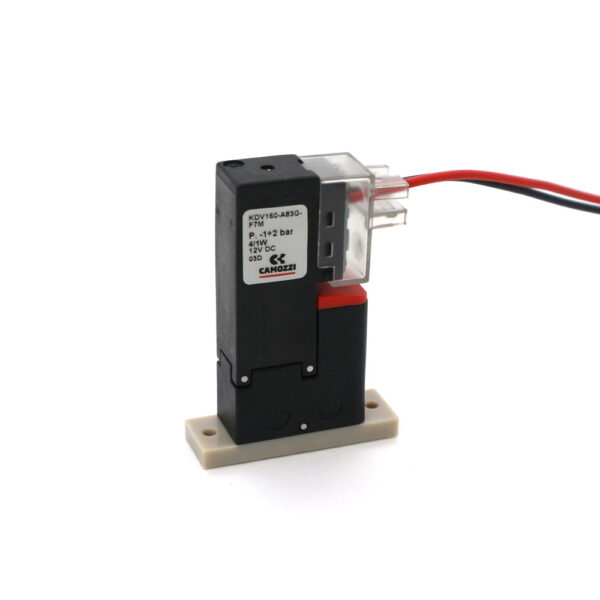

Active Valve 3/2-Way with Media Separation by Camozzi - Image 3

Active Valve 3/2-Way with Media Separation by Camozzi

196,00 €

excl. VAT plus Shipping Costs

Compact, media-separated solenoid valve for controlling aggressive, high-purity, or temperature-sensitive fluids. Ideal for medical, analytical, and life science applications.

Engineered for reliability and long service life in demanding environments.

Delivery time: 2 - 3 weeks

Euro (€) - EUR
  • Euro (€) - EUR
  • United States dollar ($) - USD
SKU: BM-A-0051 Category:

The solenoid valve of the KDV series by Camozzi is designed for handling aggressive, high-purity, or temperature-sensitive liquids and gases. This valve ensure that the controlled media do not come into contact with the mechanical parts of the valve.

A magnetically actuated mechanism opens or closes the valve orifices, making them ideal for applications requiring precision and cleanliness:

  • Suitable for neutral, aggressive, or temperature-sensitive fluids

  • Designed for use in medical devices and analytical instrumentation

  • Media-separated construction prevents contamination of fluid paths

  • Compact, space-saving design for integration into tight spaces

  • 3/2-way universal function (UNI)

  • High chemical resistance through material selection for housing and seals (PEEK body, FKM seals)

  • Reliable switching performance even with low flow rates

  • Fast switching times: ≤ 20 ms (ON/OFF)

  • Operates at 12 V DC with 4/1 W power consumption

  • Operating pressure range: -1 to +2 bar

  • Orifice size: 0.8 mm, Kv value: 0.2 l/min

  • Rated for continuous operation (100% ED)

  • IP40 protection class with 300 mm pre-wired connector

  • Flexible mounting position and base plate connection design

  • Model: KDV160-A83G-17M



Applications

  • Medical technology (e.g. dialysis machines, diagnostic equipment)

  • Laboratory and analytical devices

  • Ultra-pure water systems

  • Chemical process control

  • Handling of thermally sensitive fluids



Not Sure Where to Start?

We're here to help. Reach out with your questions or book a free consultation call with one of our experts.

Book Free Call Contact Us

A free 15-minute consultation to get you started.







Parameter Description
Function 3/2-way UNI
Operating principle Direct-acting, separating diaphragm
Pneumatic connections Base plate
Orifice size 0.8 mm
Kv value (l/min) 0.2
Operating pressure -1 to +2 bar
Operating temperature 0 to 50 °C
Media Inert or corrosive liquids and gases compatible with the materials used
Switching time ON ≤ 20 ms, OFF ≤ 20 ms
Mounting position Any
Body material PEEK
Seal material FKM
Voltage 12 V DC
Voltage tolerance ±5%
Power consumption 4 / 1 W
Duty cycle 100% (continuous operation)
Electrical connection Connector Mod. 121-8… – wire length 300 mm
Protection class IP40 with connector
Valve design Flange body for base plate mounting
Seal type FKM
Electrical cable options 90° 300 mm flying leads with protection and LED / 300 mm inline cable with protection and LED (W)

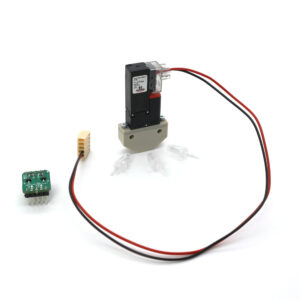

Component Quantity
KDV Series Solenoid Valve 1
Single base plate for KDV valve 1
Mounting screws 2
Tube Connectors 3
