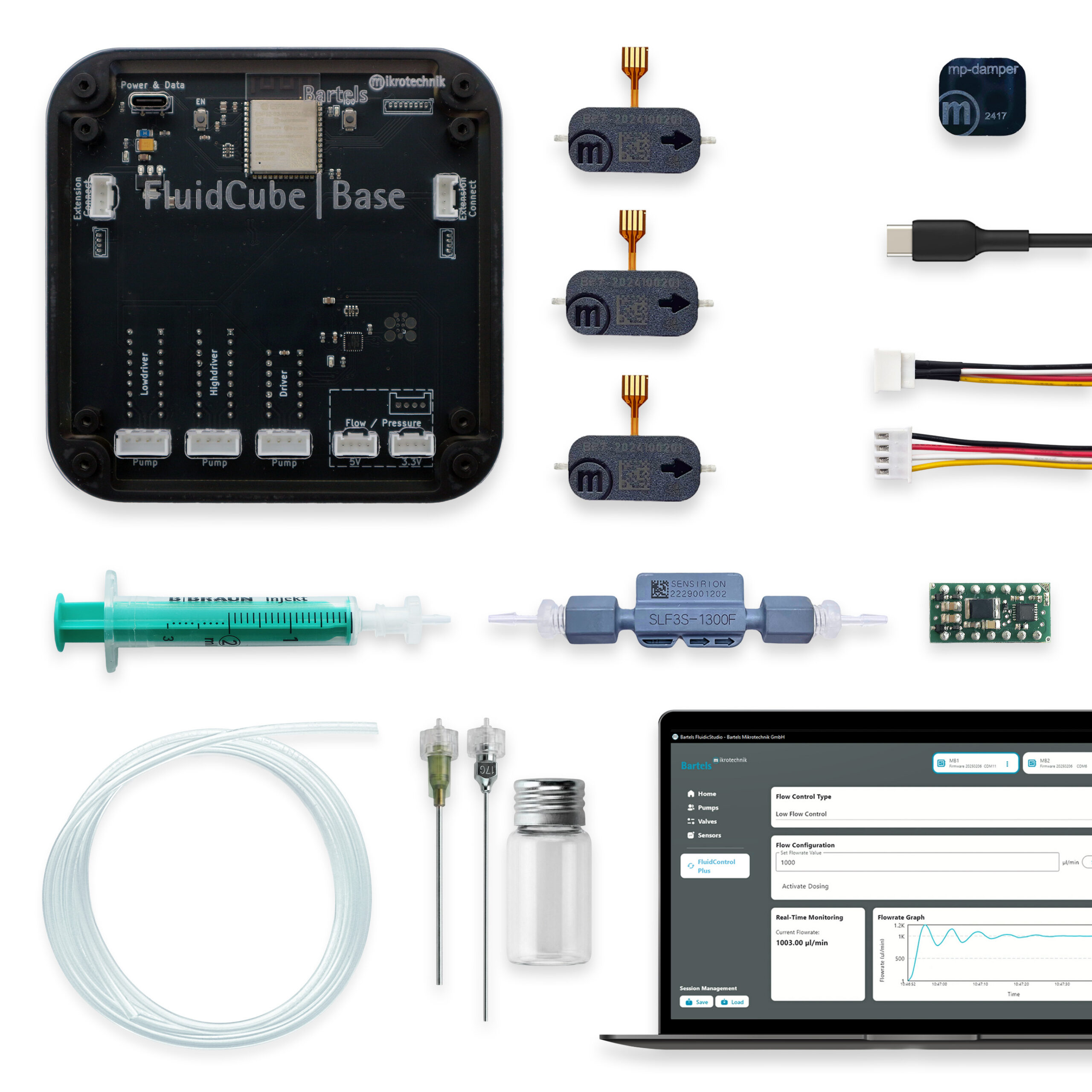

Pressure Driven Flow Control Kit

The Pressure Driven Flow Control Kit provides accurate and reproducible flow control by combining pressure driven actuation with real time measurement.

All components are designed to work together seamlessly within compact fluidics environments.

Key Features of Pressure Driven Flow Control Kit

Closed loop control allows continuous adjustment of the flow rate based on real time feedback.
An optimized pressure volume reduces pulsation and supports consistent flow behavior.

• Direct feedback from integrated flow sensor
• Pressure driven flow instead of direct liquid pumping
• Closed loop control via FluidControl Plus and Bartels Fluidic Studio
• Easy to use PID controller for precise flow control
• Reduced contamination, only the sensor contacts the fluid
• Miniaturized and standardized components for compact fluidics

Benefits

The system delivers stable performance while reducing wear and simplifying integration into compact fluidics setups.
Its design enables high functionality within a minimal installation space.

• Extended pump lifetime (pump operates with air only)
• Fewer contaminated components, easier cleaning
• Low pulsation for stable flow behavior
• Self sustaining operation without external pressure supply
• High functional density in a compact system
• Cost efficient solution with balanced performance and size

Areas of use

The kit is suited for applications that require stable and reproducible flow conditions in compact fluidics environments.
It integrates easily into systems where space and performance must be optimized.

• Dosing applications
• Perfusion systems
• Fluidic setups
• Process control with consistent flow requirements
• Lab on a chip and mobile analytical systems
