3D Serpentine Mixer Chip 1079 by microfluidic ChipShop

70,00

  • works through a sequence of directional changes in all three dimensions.
  • Chip to mix up to three fluids together.
  • dimensions: 75.5*25.5*1.5 mm (same as a microscope slide).
  • fitted with mini luer connections

Delivery time: 1 - 2 weeks

Euro (€) - EUR
  • Euro (€) - EUR
  • United States dollar ($) - USD
SKU: BM-A-0042 Category:

Description

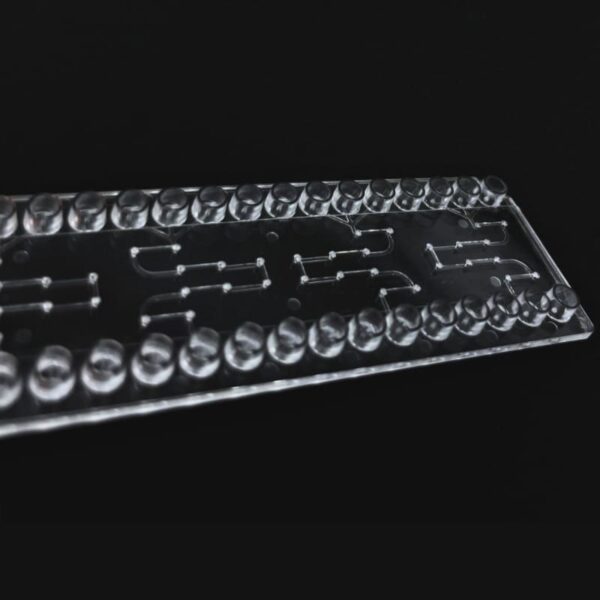

3D Serpentine Mixer Chip 1079 by Microfluidic ChipShop

This passive mixer chip is a product from our partner Microfluidic ChipShop. Easily mix up to three fluids.

Mixing fluids is crucial in microfluidics. Since in micro- and macrofluidics you almost always deal with laminar flow, diffusion typically governs mixing. However, because diffusion is very slow, you need to somehow improve mixing conditions. Mixing can be achieved by enlongating the channel length to better the conditions for diffusion or introducing turbulence to speed up the mixing process

This chip introduces turbulence trough a sequence of directional changes in all three dimensions. Mix up to three fluids and extract the result at one output. The 3d structure of the chip also makes it very compact, this allows four structures to be placed on the chip.

Specifications:

  • Microfluidic Chip Features:
    • Four identical mixer structures.
    • Passive mixer, no moving parts.
    • Material: PC.
    • Fitted with microfluidic ChipShop’s mini luer connections.
    • Dimensions: 75.5 mm x 25.5 mm x 1.5 mm (microscope slide size).

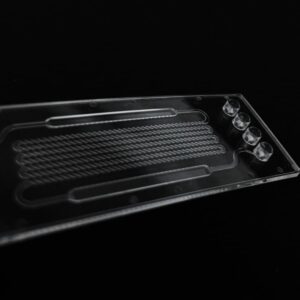

This mixing chip is one of three that we have in stock, each operating on a different principle to induce turbulence to encourage mixing. Check out the pearlchain and herringbone chips or get the mixing kit with all three chips plus micro pumps, electronics, sensors and accessories to get started with everything you need.
We are proud to bring this chip and other high quality microfluidc products to you from our partner microfluidic ChipShop, check them out here.



Data sheets

Click to download relevant Data Sheets.

CAD

All available 3d models of our products can be found on our homepage in the download section.
