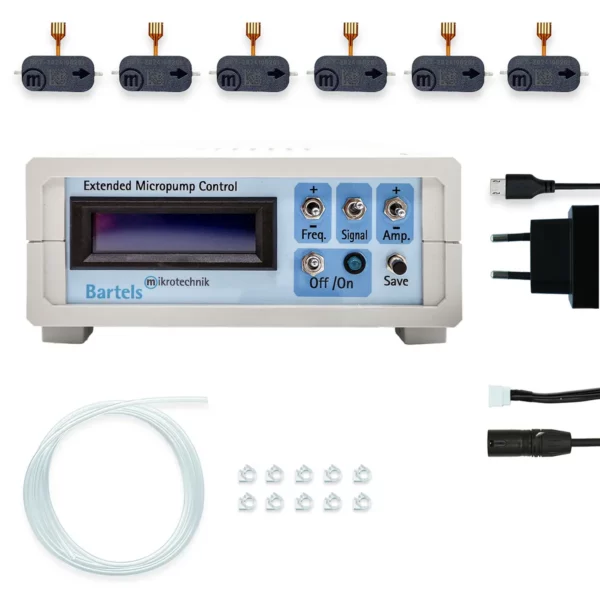

mp-Lab! Kit – Micropump control for your laboratory


  • 6x The Bartels Pump | BP7 – Tubing
  • 1x mp-Labtronix controller for micropump
    including driver software, power supply, USB cable and manual
  • 1x The Bartels Pump | BP7 – Tubing-con connection cable from micropump to mp-Labtronix
  • 1x 1m mp-t ID1.3 Tygon Tubing
  • mp-hc Micro Hose Clamp
    Packaging Unit: 10 pieces

Delivery time: 4 - 5 weeks

SKU: BM-S-0007 Category:


mp-Lab! kit – micropump control for your lab

You want to see how our micropump The Bartels Pump | BP7 – Tubing can be used in your lab?

Then take a look at our mp-Lab! kit.


With the micropump control mp-Labtronix you act comfortably in laboratory applications with micropumps, but also for intensive test series or if you are not so familiar with the secrets of electronics.

The micropump control included in this kit is our mp-Labtronix, a larger laboratory box with extensive testing capabilities. The mp-Labtronix has a much more flexible desktop controller instead of a driver, such as in the mp-basic set. At the control unit, the frequency and voltage can be entered via pushbuttons and shown on the display. It is worth mentioning that the signal form can be switched. Also the box can also be controlled externally via a USB connection.

With this system specially designed for laboratory use, you can easily adjust the frequency, amplitude and the waveform on the knobs and toggle switches to achieve the desired change in the flow or pressure values of the micropumps.

The mp-Lab! Set includes The Bartels Pump | BP7 – Tubing in addition to the micropump controller. The micropumps of the The Bartels Pump | BP7 – Tubing series are miniaturized double diaphragm pumps. Operated with two piezo actuators each, this space- and energy-saving design is very cost-effective and versatile due to the materials used. In particular, the variably adjustable flow rate is a factor that enables the wide-ranging applications of these micropumps.

In this kit for laboratory applications, you will also receive a USB cable for connection to your PC and a power cable for the power supply as well as an The Bartels Pump | BP7 – Tubing-con cable to connect the pump. The matching hose as well as hose clamps are also included.

The micropump control in the mp-Lab! Set allows a quick and comprehensive initial test to determine if the The Bartels Pump | BP7 – Tubing are a useful addition to your lab application.

You are still missing some information or have further questions?
Then head over to our contact form on our contact page. We will make sure to answer your questions as soon as possible.

Technical Data

mp-Lab! evaluation-kit containing:

*6 piezoelectric double diaphragm pump
Product in compliance with RoHs directive.

*1 mp-Labtronix controller for micropump
connector for one mp6-series micropump,
usb interface includin driver software,
including power plug and manual.
Product in compliance with EMC directive 89/336/EEC and RoHs directive.

*1 mp6-con connection cable

*1 m mp-t Tygon® Tubing

*1 pu Micro Hose Clamp mp-hc
packaging unit: 10 pieces

Customs tariff codes:
mp6 84135040
mp-Labtronix 85432000
mp6-con 85444290
mp-t 40161000
mp-hc 39174000


You can find more technical data in the data sheet or in the download area on our homepage.
