Active Valvekit by Memetis

Description

Active Valvekit Memetis

The valvekit features a valve from our partner Memetis. The valve is an ultra compact normally closed 2/2-valve with medium seperation.

This ultra-compact normally closed active 2/2 valve with medium separation by our partner memetis is perfect for applications where space is limited. Valves with medium separation allow fluid to pass through without making contact with the valve’s mechanism, making them ideal for applications in life science. This valve can also be sterilized via autoclaving. The valve’s connection is achieved via a flange mount.

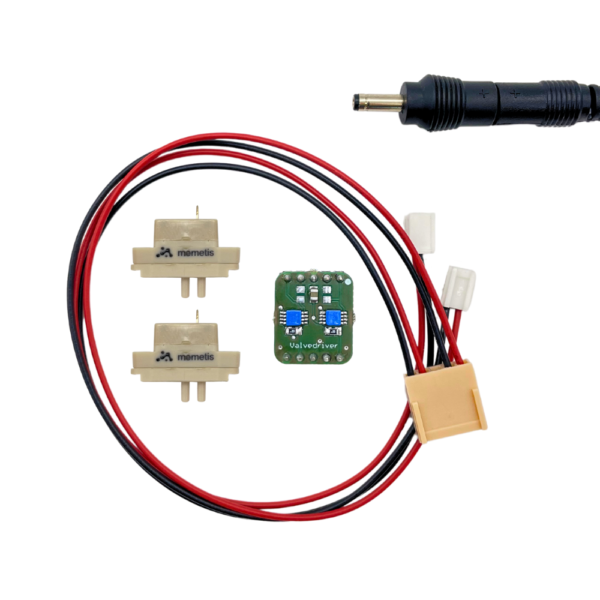

The full Memetis valvekit includes everything you need to add this valve to your microfluidic system and the mp-Multiboard2:

• one mp-valvedriverM to properly controll the valves with the Multiboard2 app.
• two Active 2/2-Valves with medium separation from Memetis.
• fluidic connectors, screws, nuts, and O-rings.
• a power supply for the mp-Multiboard2 for maximum performance.
• and the wiring to properly connect the valve to the mp-Multiboard2.

Valve Specifications

• Valve Type:
  • Normally closed 2/2-valve with medium separation.
  • reaction time: 50ms open / 160ms close
  • dimensions: 20.0*5.0*8.0mm
  • max pressure: 2.0 bar input | 1.2 bar
  • internal volume: <4µl
  • power consumption: <0.30 W

Key Features

• Space-Saving Design:
  • Ideal for applications with limited space.
• Sterilization Capability:
  • Can be autoclaved for sterilization purposes.
• Low Power Consumption:
  • Operates with minimal power consumption.

Benefits

• Seperated Fluid Flow:
  • Medium separation design enables fluid handling without valve mechanism contact.
• Compact Internal Volume:
  • Features a small internal volume for optimized system performance.
• Secure Connection:
  • Flange mount ensures secure and reliable valve connection.

This ultra-compact valve offers a space-saving design suitable for applications in life sciences and other fields where compactness and efficiency are essential.

Also, check out the following items to bring your system to the next level:

• If you wish you can get the valvedriver driver elecctronik and valve on their own.
• Connect valve to the Multiboard2.
• Check out our other valves and valvekits.

If you need help choosing the right valve for your system, don’t hesitate to reach out to us using our contact form!
