LG16 – Low Flow Liquid Sensor by Sensirion

980,00 €

excl. VAT plus Shipping Costs

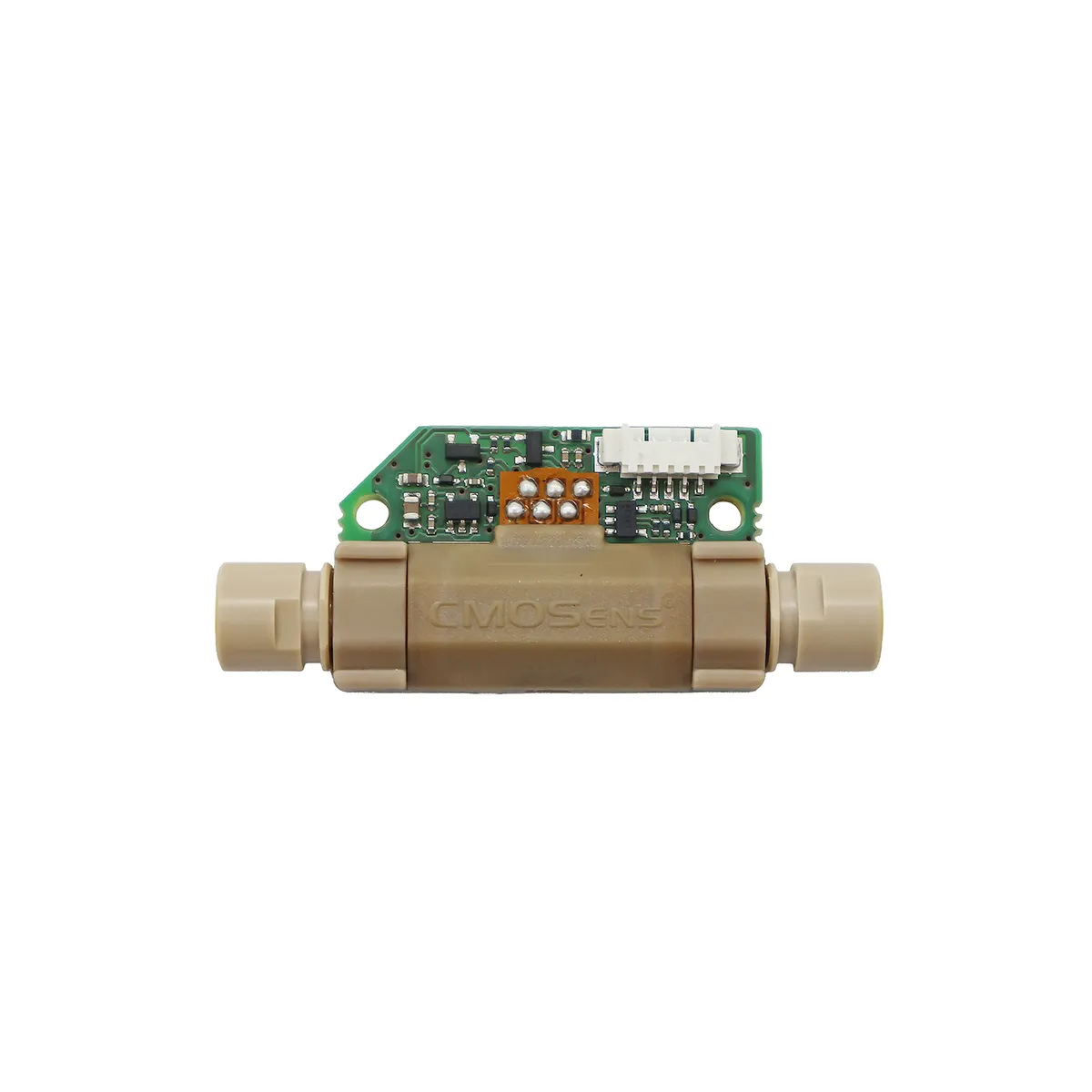

The LG16‑0431D is a compact liquid flow sensor designed for precise measurement of ultra‑low flow rates in OEM applications.

  • Accurate measurement of ultra‑low flow rates up to 80 µl/min with fast response time
  • CMOSens® technology with digital I²C interface for easy integration
  • Ideal for microfluidics, analytical instruments, and precision dosing systems
SKU: BM-A-0065 Category:

The LG16‑0431D by Sensirion is an ultra‑compact low flow liquid sensor designed for seamless integration into OEM systems and enclosed device architectures. It enables highly accurate measurement of very small liquid flow rates and supports flow rates of up to 80 µl/min, making it ideal for applications where precision, responsiveness, and minimal footprint are critical.

Powered by advanced CMOSens® sensor technology, the low flow liquid sensor delivers a fully calibrated and linearized output signal. Its digital I²C interface ensures straightforward integration into existing systems, while multiple calibration options for water and hydrocarbon‑based fluids provide maximum flexibility.

Key Features

  • Accurate measurement of ultra‑low flow rates (up to 80 µl/min) – ideal for microfluidic applications
  • Fast response time (down to ~40 ms) for dynamic processes
  • Broad media compatibility thanks to inert wetted materials (glass, PEEK, fluoropolymers)
  • Digital I²C interface for easy system integration
  • Low power consumption for energy‑efficient designs
  • Fully calibrated and linearized output – ready to use out of the box

Typical Applications

  • Microfluidic systems and lab-on-a-chip devices
  • Precision dosing and flow control applications
  • Droplet detection and air bubble monitoring
  • Analytical instruments and medical devices
  • Industrial OEM solutions requiring low flow measurement





No. Item Qty
1
LG16‑0431D Low Flow Liquid Sensor
 1
2 Connection Cable for mp-Multiboard2 1
3 Fluid Connectors 2

Click to download Accessories Catalogue.

Parameter Description
Product type Compact liquid flow meter
Sensor type Liquid flow sensor
Operating principle CMOSens® thermal liquid flow measurement
Flow range (H₂O) 0 to 80 µl/min
Full scale flow rate (H₂O) 80 µl/min
Accuracy (H₂O) ±5 % of measured value or ±0.3 % of full scale (whichever is greater)
Repeatability (H₂O) ±0.5 % of measured value or ±0.01 % of full scale (whichever is greater)
Full scale flow rate (IPA) 500 µl/min
Accuracy (IPA) ±20 % of measured value or ±1 % of full scale (whichever is greater)
Repeatability (IPA) ±1 % of measured value or ±0.05 % of full scale (whichever is greater)
Operation mode Bidirectional
Maximum recommended operating pressure 30 bar
Burst pressure 80 bar
Pressure drop at full scale (H₂O) 1 mbar
Pressure drop at full scale (IPA) 7 mbar
Total internal volume 5 µl
Fluidic connector ports UNF 6-40 for 1/32″ OD tubing
Supply voltage 4 to 12 V DC
Typical supply voltage 5 V DC
Operating current 6.8 mA typ.
Power-up time 120 ms
Response time 40 ms (τ63)
Interface Digital I²C
I²C address 0x40 (default)
I²C clock frequency 100 to 400 kHz
Operating temperature +10 to +50 °C
Storage temperature -10 to +60 °C
Wetted tube material Quartz glass (fused silica)
Fitting material PEEK
Sealing material FEP
Dimensions (L × W × H) 53 × 22 × 9 mm
Weight 6 g
Inner diameter 430 µm
Electrical connection 5-pin Molex PCB Header 53261-0571
Compliance REACH, RoHS, WEEE
